Pioneer 30 Shaker

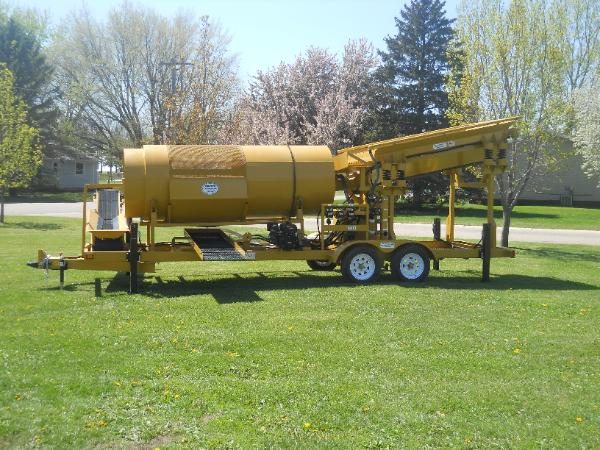

Introducing......The Pioneer 30 Shaker

Gold is where you find it!  We have recognized the need to build a machine that
is compact enough to travel, tough and reliable enough to be considered a
production machine & easy to maintain!

The "Pioneer 30 Shaker" is the most versatile and portable machine on the market.  It is industrially built for years
of service.  It will run up to 30 yards per hour (depending on the material) and has a recovery rate of 85-90%.

If you are an independent or small scale operation, this is an ideal solution for your production needs.  If you have
scaled up operations, the "Pioneer 30 Shaker" is also an ideal machine for use as a pilot plant for testing prior to
applying for time consuming permits and moving larger equipment onto a prospective property.  With an estimated
production of up to 30 yards per hour, the Pioneer 30 Shaker could be the answer to your mining needs!

The vibration for the Shaker deck is Hydraulic and is fully adjustable.  It has a 360 degree spray bar which will
wash and slurry the clays.

The Trommel consists of a 48" screening section, 8' scrubber section and a 2" nugget trap.  It is hydraulic
powered, has variable speed, with solid steel rollers.

Pioneer 30 Shaker Specifications

  •  Adjustable Coupler Height

  • 2 - 5/16" Coupler

  • Break-a-way Switch

  • Electric Brakes

  • Hydraulic Outriggers

  • 24" x 8' Oscillating Sluice

  • 8' x 6' Shaker Deck

  • 11' x 48" Trommel

  • Solid Steel Trommel Rollers

  • 1 - 15/16" Pillow Block Bearings

  • 65 Gallon Hydraulic Tank with Inter Cooler

  • Positive Chain Drive

  • 2" Nugget Trap

  • 13HP OHC w/ Electric Start w/ Double Hydraulic Pump

  • 8' Discharge Conveyor w/ Self Cleaning Return Roller

  • Water Manifold

  • 3" Water Intake

  • ST 205-75-R15 BC Tires

  • 3" Trommel Spray Bar

  • 1-1/2" Shaker Spray Bar

  • 2" Chute Spray

  • 2" Sluice Water Intake

  • 7'11" Wide    26' Long     9' High




OPTIONS

Diesel Engine
Replacement Screens
Water Supply Pump & Hose
Spare Parts Package
Security Covers
48" x 20' Stationary Sluice with Adjustable Tilt
$ 53,350 USD
FOB Tracy, MN  USA
