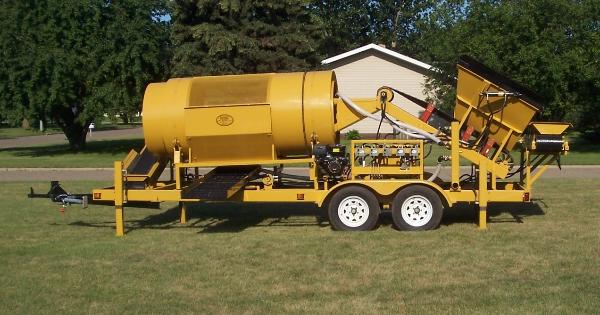

Pioneer 30

Pioneer 30 Specifications

  •  13HP OHC w/ Electric Start Engine w/ Double Hydraulic Pump

  •  65 gallon Hydraulic Fluid Reservoir

  •  8' Discharge Conveyor w/ Self Cleaning Return Roller

  •  8' Main Feed Conveyor w/ Self Cleaning Return Roller

  • 8' Grizzly Over sized Discharge Conveyor w/ Self Cleaning Return Roller

  •  3" Spacing on Hopper Grizzly

  • Positive Chain Drive

  •  48" x 96" Trommel Drum w/ High Tensile Trommel Screen w/ 3/8" openings

  • Solid Steel Trommel Rollers

  • 2" Nugget Trap

  • 7' Long x 2" Spray Bar

  • 24" x 8' Oscillating Sluice

  • 2" Auxiliary Port for Sluice

  • 1 - 1/2" Spray Bar for Material Chute

  • 3" Intake on Water Manifold

  •  4 Flow Controls (Trommel, Feed, Oscillator & Discharge)

  •  Sealed Centric Locking Pillow Block Bearings

  •  4 Hydraulic Stabilizing Jacks

  • Hydraulic Filter

  • Trailer Lights w/ Break-away Switch

  •  Adjustable Tongue Height

  • Clean up Water Supply Connect w/ Valve

  • Tandem Axle w/ Electric Brakes on Leading Axle

  • Easy Lube Axle w/ Joined Equalizers

  • ST205-75-R15BC Tires

  • Hydraulic Tilt Grizzly

  • 30 Yard Per Hour Capacity

  • Formed Channel Frame Construction

  • 98" Wide x 96" High x 294" Long

  • 4,500#



OPTIONS

Diesel Engine
Security Covers for Motor and Controls
Replacement Screens
Water Supply Pump & Hose
Spare Parts Package
Spare Tire and Rim
48" x 20' Stationary Sluice with Adjustable Pitch
Floor Storage Compartment

The Pioneer 30 will process 15-30 yards per hour depending on the material.  Featuring variable fine speed
tuning you are able to establish an even material flow which will enable the unit to adapt to any type of material
while maintaining a recovery rate of 85-90%.  It is also industrially built which will allow for years of operation
with proper maintenance.

If you are an independent or small scale operation, this is an ideal solution for your production needs.  If you
have scaled up operation, the “P-30” is also an ideal machine for use as a pilot plant for testing prior to
applying for time consuming permits and moving larger equipment onto a prospective property.  With an
estimated production of 15-30 yards per hour, the “P-30” could be the answer to your mining needs!
$ 42,450 USD
FOB Tracy, MN  USA
Gold is where you find it!  We have recognized the need to build a machine
that is compact enough to travel, tough and reliable enough to be
considered a production machine & easy to maintain!
