Pioneer 15 Shaker

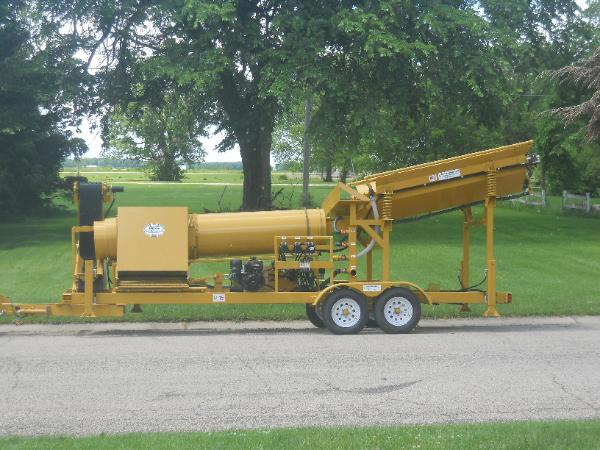

Introducing......The Pioneer 15 Shaker

Gold is where you find it!  We have recognized the need to build a machine that is
compact enough to travel, tough and reliable enough to be considered a production
machine & easy to maintain!

The "Pioneer 15 Shaker" is the only small production, flexible discharge, hydraulic machine on the market.  It is
easily portable and was designed and manufactured for a small production or pilot processing operation,
particularly for the gold mining industry.  It will process 8-15 yards per hour, depending on the material.  The
sluice and discharge conveyor are independently interchangeable, allowing either or both discharges to be placed
on either side of the machine. This facilitates an easy set up in only a matter of minutes with this truly portable
production machine.

If you are an independent or small scale operation, this is an ideal solution for your production needs.  If you have
scaled up operations, the "Pioneer 15 Shaker" is also an ideal machine for use as a pilot plant for testing prior to
applying for time consuming permits and moving larger equipment onto a prospective property.  With an estimated
production of 8-15 yards per hour, the Pioneer 15 Shaker could be the answer to your mining needs!

Pioneer 15 Shaker Specifications

  •  18 HP OHC w/ Electric Start Engine w/ Single Hydraulic Pump

  •  20 gallon Hydraulic Fluid Reservoir

  •  8' Discharge Conveyor

  •  6' Feed Conveyor w/ Self Cleaning Return

  •  2" Spacing on Hopper Grizzly

  •  24" x 220" Trommel Drum

  • 48" x 8' Sluice

  • Hydraulic Outriggers

  • Adjustable Height Coupler

  • Break-A-Way Switch

  • 180 Degree Spray Bar around Shaker

  •  3 Flow Controls (Trommel, Feed & Discharge)

  •  Sealed Centric Locking Pillow Block Bearings

  •  4 Stabilizing Jacks

  •  High Tensile Trommel Screen w/ 3/8" openings

  • Hydraulic Filter

  • Oscillating Sluice Box 18" x 6'

  •  Trailer Lights

  •  Adjustable Tongue Height

  • Clean up Water Supply Connect w/ Valve

  • Tandem Axle w/ 205/75/D14 Tires

  • Easy Lube Axle w/ Joined Equalizers

  • Electric Brakes

  • 15 Yard Per Hour Capacity

  • Formed Channel Frame Construction

  • 84" Wide x 90" High x 204" Long

  • 3,000#

OPTIONS
Replacement Screens
Water Supply Pump & Hose
Spare Parts Package
Hydraulic Tip Grizzly
Floor Storage Compartment
$ 29,150 USD
FOB Tracy, MN  USA
