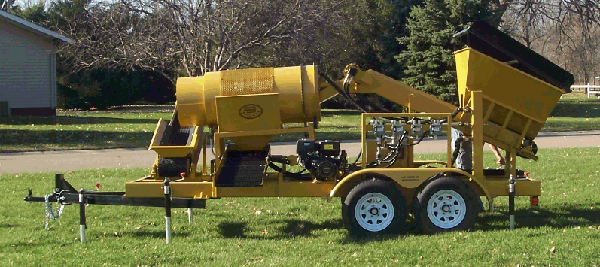

Pioneer 15

Gold is where you find it!  We have recognized the need to build a machine that is compact
enough to travel, tough and reliable enough to be considered a production machine & easy to
maintain!

The "Pioneer 15" is the only small production, flexible discharge, hydraulic machine on the market.  It is easily portable and was
designed and manufactured for a small production or pilot processing operation, particularly for the gold mining industry.  It will
process 8-15 yards per hour, depending on the material.  Designed to set up in only a matter of minutes males this a truly portable
production machine.

If you are an independent or small scale operation, this is an ideal solution for your production needs.  If you have scaled up
operations, the "Pioneer 15" is also an ideal machine for use as a pilot plant for testing prior to applying for time consuming permits
and moving larger equipment onto a prospective property.  With an estimated production of 8-15 yards per hour, the  Pioneer 15
could be the answer to your mining needs!
Pioneer 15 Specifications

  •  13HP OHC w/ Electric Start Engine w/ Single Hydraulic Pump

  •  17 gallon Hydraulic Fluid Reservoir

  •  8' Discharge Conveyor

  •  6' Feed Conveyor w/ Self Cleaning Return

  •  2" Spacing on Hopper Grizzly

  •  48" x 24" Trommel Drum

  • 3" Water Intake

  • 48" Trommel Spray Bar

  • 2" Nugget Trap

  •  3 Flow Controls (Trommel, Feed & Discharge)

  •  Sealed Centric Locking Pillow Block Bearings

  •  4 Stabilizing Jacks

  •  High Tensile Trommel Screen w/ 3/8" openings

  • Hydraulic Filter

  • Oscillating Sluice Box 18" x 6'

  •  Trailer Lights

  •  Adjustable Tongue Height

  • Clean up Water Supply Connect w/ Valve

  • Tandem Axle w/ 205/75/D14 Tires

  • Easy Lube Axle w/ Joined Equalizers

  • 15 Yard Per Hour Capacity

  • Formed Channel Frame Construction

  • 84" Wide x 90" High x 204" Long

  • 3,000#



OPTIONS

Replacement Screens
Water Supply Pump & Hose
Spare Parts Package
Hydraulic Tip Grizzly
Floor Storage Compartment
Hydraulic Outriggers
48 x 20' Stationary Sluice with Adjustable Pitch
Diesel Engine
Security Cover for Sluice
Security Cover for Motor & Controls
$ 22,850 USD
FOB Tracy, MN  USA
