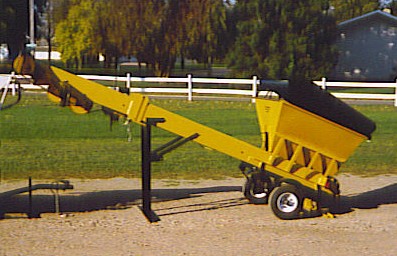

12’ Feed Conveyor


The 12' Feed Conveyor is designed to give continuous feed to your Gold Claimer  or African
Model Gold Claimer for high production and profits.  Its self contained trailer folds down to a
transportation length of 9' to make it the most portable conveyor on the market.

Simplicity is the key for setting up your 12' Feed Conveyor!  Place the unit where you want it &
raise the front so that the back leg is on the ground.  Remove the pin so that the front leg swings
down and replace the pin.  Fold out the front portion of the conveyor.  Bolt the motor on the
mount, slide it into place & install the B-width belt.  Position the
Gold Claimer or African Model
Gold Claimer in place with the hopper under the head pulley of the Conveyor & you're ready for
operation!

The Grizzly is 4.5' by 4.5' and the bars are spaced at 2".  Some customers prefer smaller
openings which can be done.  The hopper has an adjustable feed door to control the material
flow.  The standard belt feed is set at 100' per minute and the speed can easily be changed
faster or slower by simply changing the throttle position or pulley.



12' Feed Conveyor Specifications


  •  Even feed @ 100 feet per minute

  •  Chain Drive, 12 inch X 12 foot, 2 ply Rubber Belt

  •  5HP Honda air cooled engine

  •  14 GA Steel Construction made for industrial use

  •  Trailer Mounted

  •  Folds down to 9 ft. Long for transportation

  •  4 ft. X 4 ft. (3/4 cu. Yd.) Steel Hopper w/belt flashing and feed control

  •  Rock Grizzly w/ 2" openings

  •  For use w/ skid loader or other loader

  •  12' Long X 4' 7" Wide;   Weight:  900#
$ 5,450 USD
FOB Tracy, MN  USA
